Language support in mind maps

Display languages in mind maps

In the mind map, the topic text, Personal Auto and Vehicle, becomes the label or name of the object in the visualized product. When you run a policy transaction in PolicyCenter, these labels and names appear in the user interface. If a mind map has only one language, the product is always imported as US English (en_US).

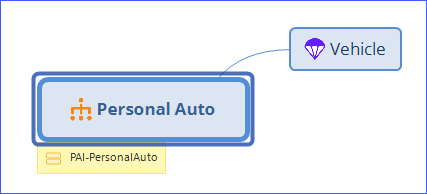

Personal Auto product line topic with Vehicle risk object.

You can define mind maps with text for two languages, with English as the second language. In the map, use a caret (^) to separate the text for each language. Enter the English text after the caret.

To add additional languages, create mind maps for each language. For a product that needs French and German, create a French/English mind map and a German/English mind map. The en_US English is used to match the names.

See also

German/English mind map

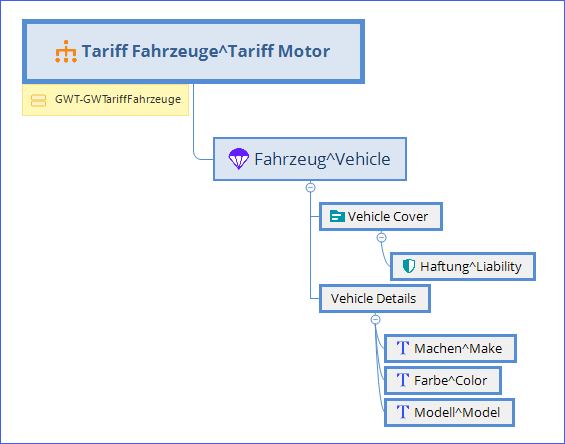

In a German/English mind map, the product line name appears first in German (Tariff Fahrzeuge) and then in English (Tariff Motor):

Tariff Fahrzeuge^Tariff Motor
German and English text are provided for objects that appear in the product user interface. Text that does not appear in the user interface, such as Vehicle Cover and Vehicle Details, may be English only.

Japanese mind maps

To create XMind mind maps with Japanese text, you must have the Meiryo UI font installed.
